Luogo di origine: | La Cina |
Marca: | Brando |
Certificazione: | CE |
Numero di modello: | BAPC211037301 |
Quantità di ordine minimo: | 1 PC |
---|---|
Imballaggi particolari: | scatole interne, cartoni, pallet |
Tempi di consegna: | 7 giorni lavorativi |
Termini di pagamento: | L/C, T/T, Western Union |
Capacità di alimentazione: | 100000PCS al mese |
Numero di riferimento: | C113444, K0850 | Tipo: | modo 2 |
---|---|---|---|
Guida Tuve OD: | 11MM | NC/NO: | NC |
Materiale della metropolitana di guida: | Acciaio inossidabile | Materiale della guarnizione: | NBR |
Materiale commovente del centro: | Acciaio inossidabile elettromagnetico | Tensione: | AC/DC |
Evidenziare: | K0850 Solenoid Valve Stem,SCG353A043 SCG353A044 Solenoid Valve Stem,ASCO Type K0850 |
K0850 SCG353A043 SCG353A044 Repair Kit Pulse Solenoid Valve Stem
This is ASCO type armature assembly repair kit for SCG353A043, SCG353A044 dust collector solenoid pulse valve. Solenoid valve is a basic element used to switch the fluid path or commutate the fluid; its internal components are precision machined, and different valve body and core materials are selected to meet the circulation of different media. The function is achieved by the lifting or falling of its internal electromagnetic moving iron core, and the action of the moving iron core is completed by the power on or off of the electromagnetic coil.
Model number | BAPC211037301 |
Ref numbers | K0850 |
Type | 2/2 Way |
Function | Normally Closed (NC) |
Core tube material | 304 Stainless steel |
Moving core material | Stainless steel 430FR |
Sealing material | NBR (Common), VITON (Available) |
Suitable Coil Hole Diameter | φ11mm |
Suitable Coil Height | 31mm |
Inlet orifice max | 6mm |
Voltage | DC, AC |
Connection | Threaded |
Applicable Valve Model | SCG353A043, SCG353A044 |
Valve | Repair Kits | Coils | ||||
AC | DC | 24VDC | 24 VAC | 110VAC | 220VAC | |
SCG353A043 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
SCG353A044 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
SCG353A052 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
SCG353A053 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
SCG353A047 | C113827 | C113827 | 400425342 | 400425101 | 400425118 | 400425117 |
SCG353A050 | C113685 | C113686 | 400425342 | 400425101 | 400425118 | 400425117 |
SCG353A051 | C113685 | C113686 | 400425342 | 400425101 | 400425118 | 400425117 |
SCG353A060 | C123432 | C123433 | 400425342 | 400425101 | 400425118 | 400425117 |
SCG353A065 | C113827 | C113827 | 400425342 | 400425101 | 400425118 | 400425117 |
C113444 K0850 Armature Assembly Application of SCG353A043 SCG353A044 Pulse Valve:

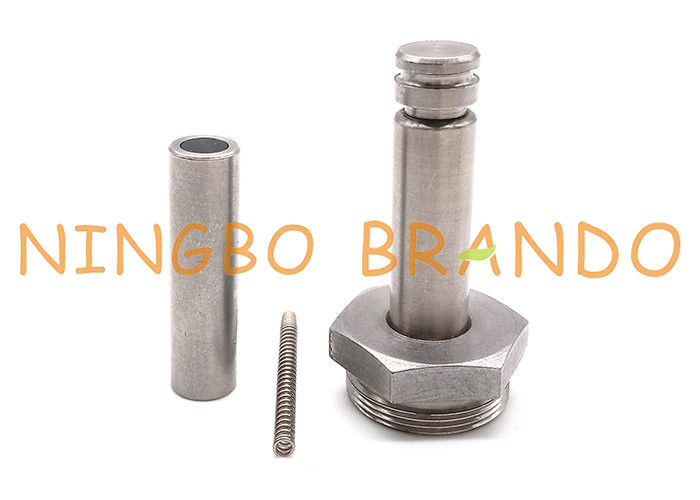

K0850 solenoid armature consist of guide tube , spring, moving core and seal. Suit for ASCO type solenoid pulse valve SCG353A043 SCG353A044. Which is widely used in dust collector system in industrial.
The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.
When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity. The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.
When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.
The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
