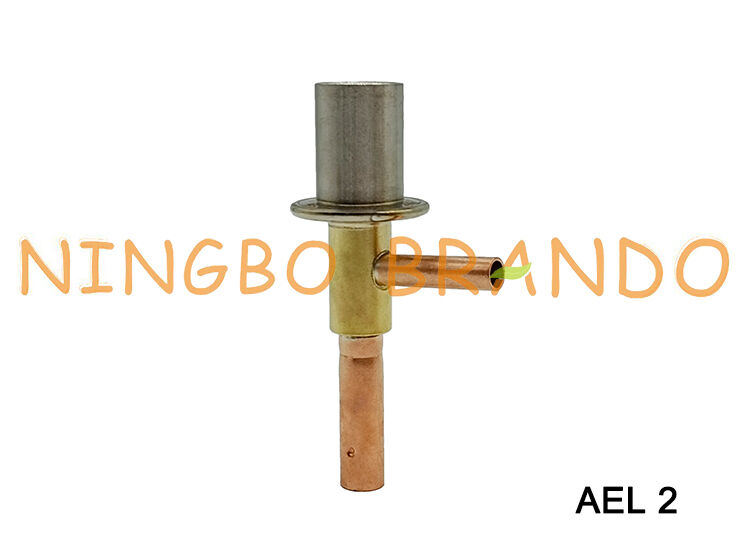

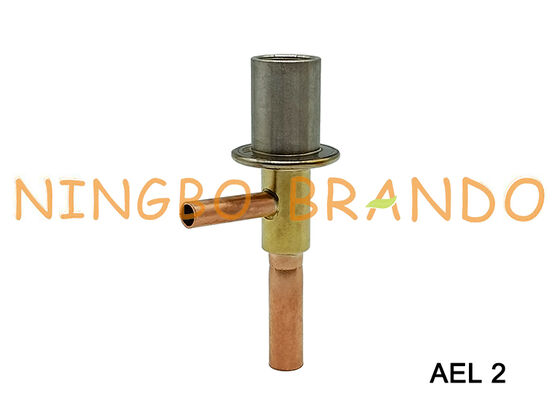

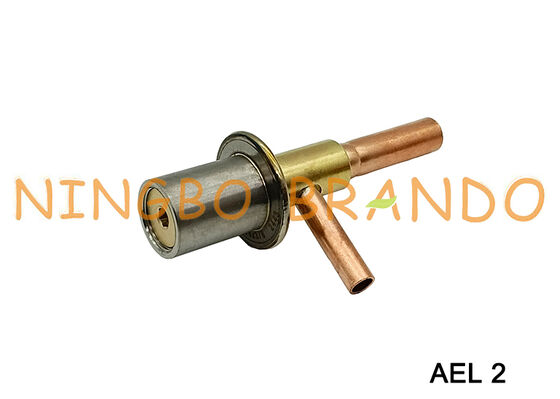

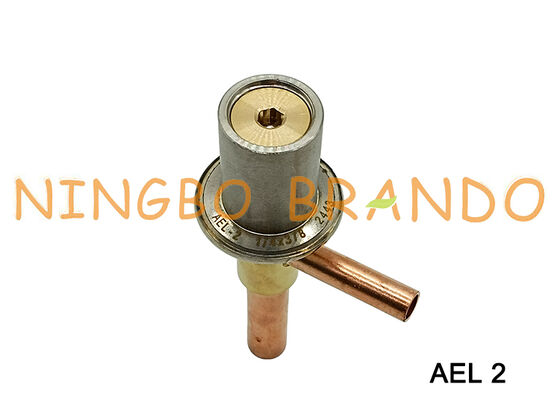

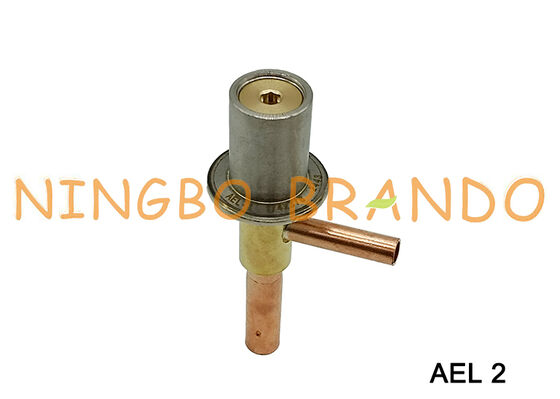

Name: Honey well Type AEL-2.0 Automatic Expansion Valves Series AEL AEL-222202 AEL-222212
Brand: Ningbo Brando Hardware Co., Ltd
SKU: AEL 2.0
Price: 65.00 USD
Availability: InStock

Casa Prodotti Elettrovalvola a solenoide di refrigerazione

Honey well Type AEL-2.0 Automatic Expansion Valves Series AEL AEL-222202 AEL-222212

Dettagli:

Luogo di origine:	Cina
Marca:	BRANDO
Certificazione:	None
Numero di modello:	AEL 2.0

Termini di pagamento e spedizione:

Quantità di ordine minimo:	5 pezzi
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola interna, cartone, pallet
Tempi di consegna:	Negoziazione
Termini di pagamento:	T/T, Western Union, MoneyGram
Capacità di alimentazione:	100000 pezzi al mese

Contatto

Descrizione di prodotto dettagliata

Nome del prodotto:	valvola automatica di espansione	Codice di ordinazione:	AEL-222202, AEL-222212
Dimensione della porta:	1/4' di ingresso, 3/8' di uscita	Dimensione dell'orifizio:	2,0 mm
Collegamento del tubo:	Saldare	Carica termica:	Tutti CFC, HCFC, HFC, non per l'ammoniaca
Impostazione di fabbrica:	22 bar	Applicazione:	Climatizzatore, asciugatore d'aria, deumidificatore, raffreddatore d'acqua, macchinario per il ghiac
Evidenziare:	Automatic expansion valve Honey well AEL- 2.0 , Honey well AEL 2.0 , Honey well expansion valve AEL-222212

Honey well Type AEL-2.0 Automatic Expansion Valves Series AEL AEL-222202 AEL-222212

Series AEL Automatic Expansion Valves with fixed orifice and adjustable evaporating pressure; Automatic expansion valves (constant pressure valves) series AEL are used in general refrigeration and for original equipment. For plants with single injected evaporators and without a distributor, such as air conditioners, dehumidifiers, air driers, water coolers or ice-making machines.

1. Smallest dimensions
2. High performance
3. Hermetic construction
4. Adjustable evaporating pressure setting
5. Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
6. Maximum pressure PS 25.5 bar
7. Maximum test pressure PF 28 bar

Ordering Code of AEL Series Automatic Expansion Valve:

Model	Inlet (ODF)	Outlet (ODF)	Orifice Size	Type
AEL0.5	6mm	10mm	0.7	AEL-222200
AEL0.5	1/4''	3/8''	0.7	AEL-222210
AEL 1.0	6mm	10mm	1.0	AEL-222201
AEL 1.0	1/4''	3/8''	1.0	AEL-222211
AEL 2.0	6mm	10mm	2.0	AEL-222202
AEL 2.0	1/4''	3/8''	2.0	AEL-222212
AEL 3.0	6mm	10mm	3.0	AEL-222203
AEL 3.0	1/4''	3/8''	3.0	AEL-222213
AEL 4.0	6mm	10mm	3.5	AEL-222204
AEL 4.0	1/4''	3/8''	3.5	AEL-222214
AEL 5	3/8''	5/8''	4.75	AEL-222285
AEL 6	10mm	16mm	5	AEL-222205
AEL 6	3/8''	5/8''	5	AEL-222215

Dimenison of AEL Series Automatic Expansion Valve:

Honey well Type AEL-2.0 Automatic Expansion Valves Series AEL AEL-222202 AEL-222212 0

Model	Valve Size	Connection		Dimension
		Inlet (A)	Outlet (B)	C	D	E	F
AEL	0.5 1.0 2.0 3.0 4.0	6mm ODF	10mm ODF	58	36	106	54
		1/4'' ODF	3/8'' ODF
	5.0 6.0	10mm ODF	16mm ODF	64	47	122	69
		3/8'' ODF	5/8'' ODF

Video of AEL 0.5 Automatic Expansion Valve:

Capacities of AEL Series Automatic Expansion Valve:

Type	Valve Size	Orifice Size	Nominal Capacity (kW)
Type	Valve Size	Orifice Size	R22	R134a	R404A	R507A
AEL	0.5	0.7	1.4	1.0	0.97	0.98
	1.0	1.0	2.0	1.4	1.4	1.4
	2.0	2.0	4.0	2.9	2.8	2.9
	3.0	3.0	9.3	6.6	6.5	6.6
	4.0	3.5	12.2	8.7	8.6	8.7
	5.0	4.75	4.75	15.9	15.8	15.9
	6.0	5.0	29.1	2.0.0	20.5	20.7
