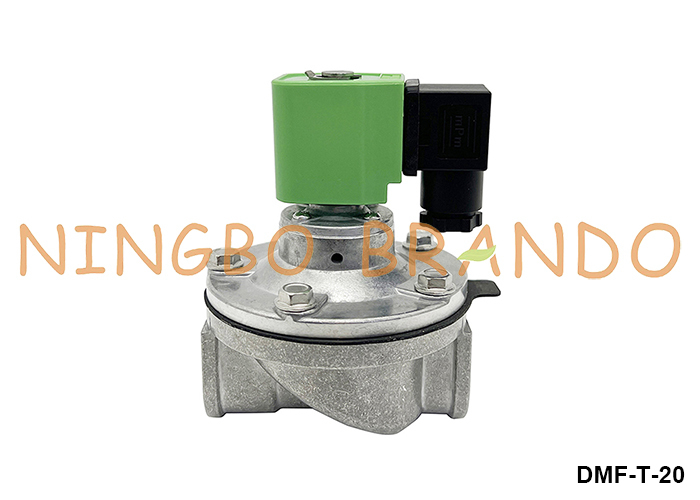

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through

  • DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through
DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through
Dettagli:
Luogo di origine: Ningbo, Cina
Marca: BRANDO
Certificazione: None
Numero di modello: DMF-T-20
Termini di pagamento e spedizione:
Quantità di ordine minimo: 8pcs
Prezzo: Negoziabile
Imballaggi particolari: Box, cartone, pallet
Tempi di consegna: Circa 4-7 giorni lavorativi dopo la consegna del pagamento
Termini di pagamento: T/T, PayPal, Western Union
Capacità di alimentazione: 50000pcs al mese
Contatto
Descrizione di prodotto dettagliata
Nome prodotto: Valvola di impulso Dimensione della porta: G3/4''
Materiale del corpo: Alluminio Materiale diaframma: NBR (norma), FKM (facoltativo)
Pressione di lavoro: 1 a 8 bar Voltaggio: 24VDC, 24VAC, 110VAC, 220VAC
Applicazione: Collettore di polveri
Evidenziare:

SBFEC Pulse Valve DMF-T-20

,

BFEC Pulse Valve DMF-T-20

,

Straight Through Pulse Jet Valve

DMF-T-20 3/4'' Straight Through Pulse Valve



Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different design of pulse valve:


1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type



Technical Data:

Integral Pilot
DMF-T-20
DMF-T-25S
DMF-T-40S
DMF-T-50S
DMF-T-62S
Remote Pilot
MF-T-20
MF-T-25S
MF-T-40S
MF-T-50S
MF-T-62S
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC



DMF-T-20 Dimension:

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 0



Our Production:

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 1



Related Products:

DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 2 DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 3 DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 4 DMF-T-20 SBFEC Type Dust Collector Pulse Valve 3/4'' Straight Through 5
Solenoid Coil Solenoid Armature Diaphragm Pulse Controller



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
