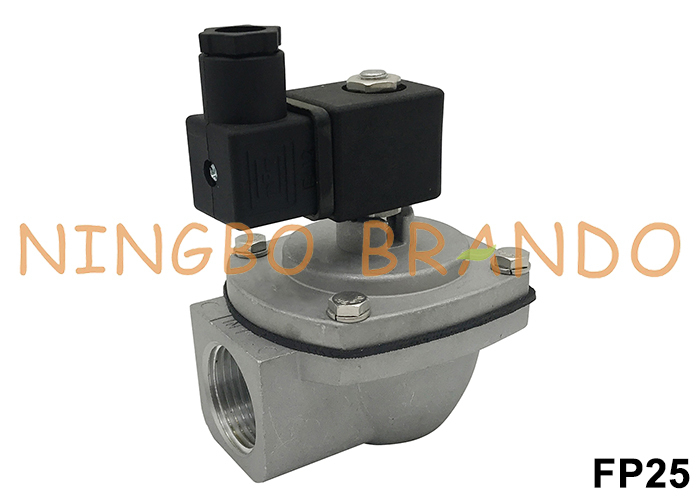

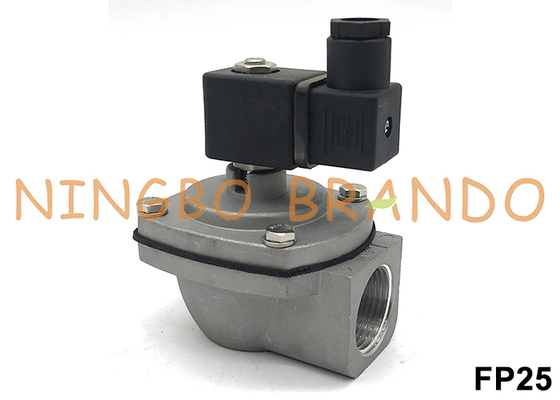

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V

  • TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V
  • TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V
  • TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V
  • TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V
  • TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V
TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V
Dettagli:
Luogo di origine: Ningbo, Cina
Marca: BRANDO
Certificazione: None
Numero di modello: FP25
Termini di pagamento e spedizione:
Quantità di ordine minimo: 8pcs
Prezzo: Negoziabile
Imballaggi particolari: Box, cartone, pallet
Tempi di consegna: Da 4 a 7 giorni lavorativi
Termini di pagamento: Paypal, Western Union, T/T
Capacità di alimentazione: 50000pcs al mese
Contatto
Descrizione di prodotto dettagliata
Nome prodotto: Valvola di impulso Dimensione della porta: 1 ''
Materiale del corpo: Alluminio Materiale diaframma: NBR (norma), FKM (facoltativo)
Pressione operativa: 0,5 - 7,5 barre Voltaggio: 24VDC, 24VAC, 110VAC, 220VAC
Applicazione: Collettore di polveri
Evidenziare:

TURBO Pulse Jet Valve

,

FP25 Pulse Jet Valve

,

TURBO TF025 Pulse Valve

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V



Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.



Technical Data:

Integral Pilot
FP20
FP25
FP40
FP55
FP65
Remote Pilot
FM20
FM25
FM40
FM55
FM65
Port Size
3/4''
1''
1-1/2''
2''
2-1/2''
Diaphragm Number
1
2
Pipe Connection
Threaded
Body Material
Diecast Aluminum
Diaphragm Material
NBR (Standard), FKM (Optional)
Working Pressure
0.5 to 7.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC



FP25 Dimension:

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 0



Related Products:

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 1 TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 2 TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 3 TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 4
Coil Armature Diaphragm Pulse Controller



Production Show:

TURBO Type FP25 1'' Pulse Jet Valve for Dust Collector 24V220V 5


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
